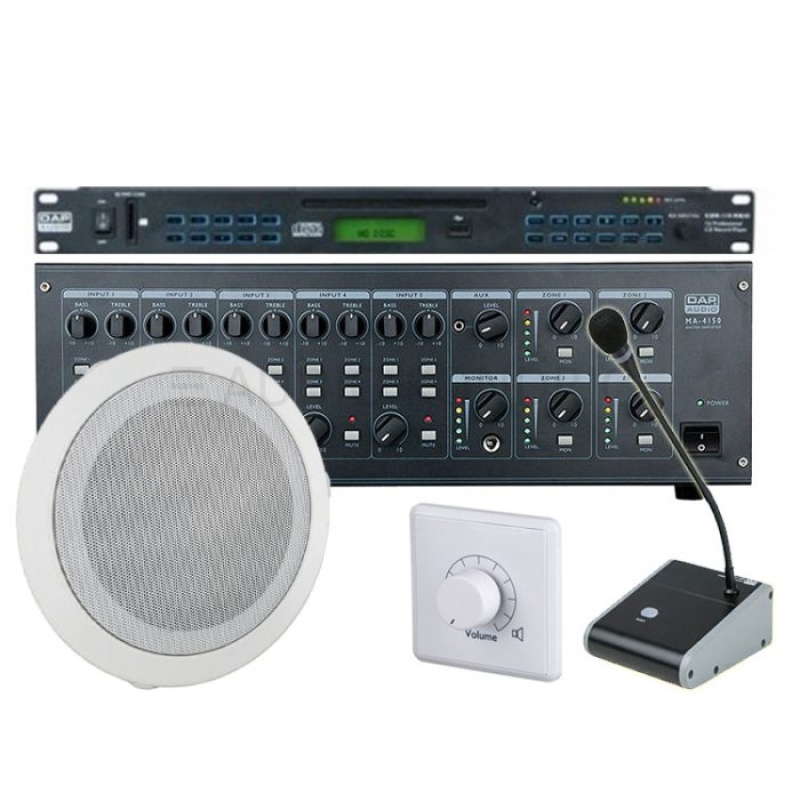

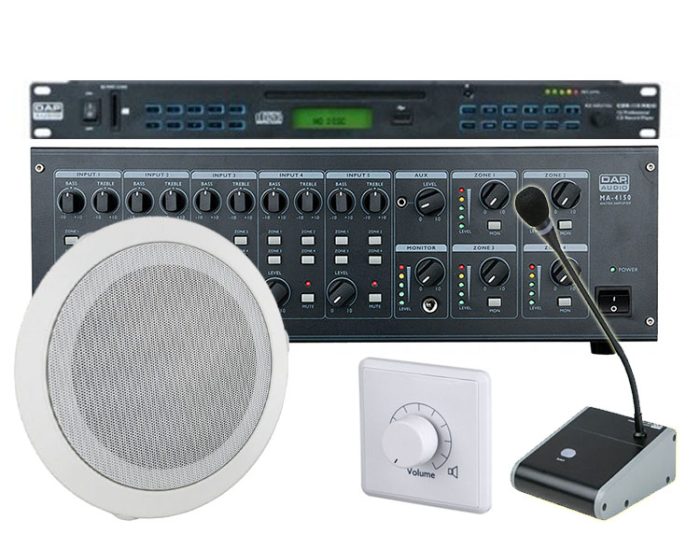

Komplet AU05 : Ozvočenje za objekte

Ozvočenje primerno za šole, trgovske centre , skladišča , toplice…

Šifra: AU05 Kategorija:

Opis

DAP Audio MA-4150 Sistemski ojačevalnik 4 x 150W

• 4 individual 150W outputs
• 5 Inputs with matrix functionality
• Bass & Treble control on each channel
• Front line input, 3.5mm Jack
• Pre amp zone outputs
• Telephone paging with volume & zone control
• 4/8Ohm & 25/70/100V output
• Monitor output
• Priority on input 1
• Limiter protection


Specifications

  • Output Power: 4 x 150W
  • Power outputs: 4Ohm, 8Ohm, 25V, 70V, 100V (terminal strip)
  • Zone pre amp outputs: Terminal strip
  • Input 1: Line/Microphone with variable gain and phantom power (XLR/Jack combo)
  • Input 2: Line/Microphone with variable gain and phantom power (XLR/Jack combo)
  • Input 3: Line/Microphone with variable gain and phantom power (XLR/Jack combo)
  • Input 4: Line with variable gain (RCA)
  • Input 5: Line with variable gain (RCA)
  • Indication LEDs: VU bar with clip indication each zone
  • Tone control: Bass 100 Hz, treble 10 KHz, +/-12dB
  • Priority: Input 1 (terminal strip, N.O. contact)
  • Monitor output: 1W 8Ohm & Line, terminal strip
  • Tel paging zone: By dipswitch back panel
  • Main power supply: 230V AC, 50/60Hz
  • Power consumption: 1100W
  • Power connection: IEC
  • Dimensions: 420 x 374 x 145 mm (WxDxH)
  • Weight: 12,5Kg
  • Accessories: 19″ Rack mounts
  • Full specification in manual
