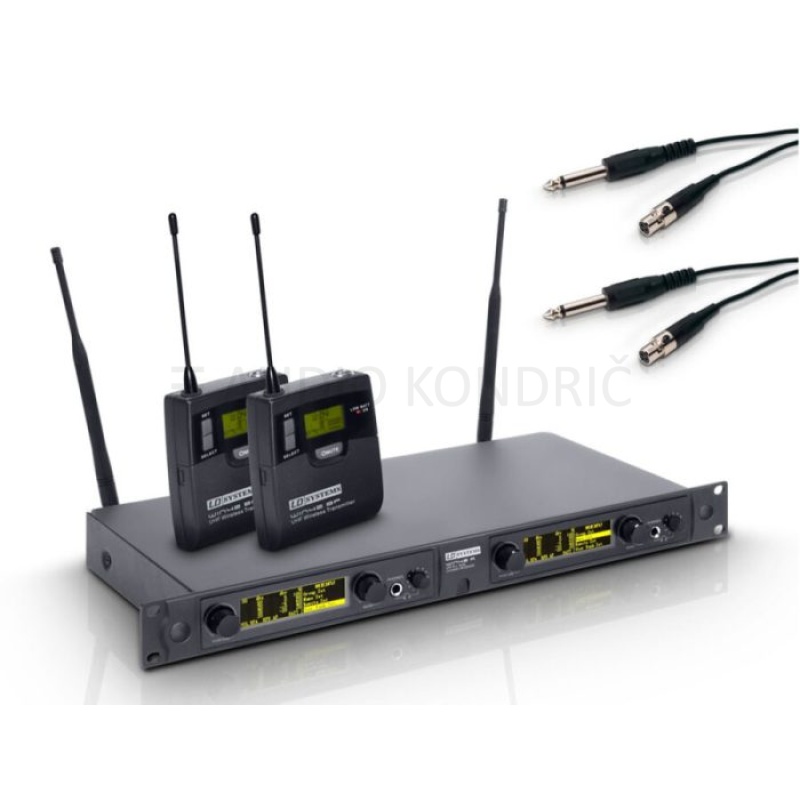

Instrumentalni set – dvojni kitarski/bas brezžični sistem LD Systems WIN 42 BPG2

Set vsebuje:
1 x LD Systems LDWIN42R2 – dvojni brezžični sprejemnik/receiver
2 x LD Systems LDWIN42BP – žepni oddajnik
2 x LD Systems Kitarski kabel za brezžični sistem

Frekvenčno območje: 734.000 – 776.000MHz

Smo uradno pooblaščeni serviser v garancijskem in izven garancijskem roku.

Šifra: LDWIN42BPG2 Kategorija:


Wireless Microphone System with 2 x Belt Pack and 2 x Headset

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system.

With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 734 MHz to 776 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules).

The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The “channel scan” function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment.

The half-rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) “Mute On/Off” function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems.

Smo uradno pooblaščeni serviser v garancijskem in izven garancijskem roku.
Garancija na: LD Systems, Cameo, Palmer produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU. Tel: 02 / 776 10 51

LDWIN42BP – Belt pack transmitter for LD WIN 42 BPH wireless microphone system
Product type: Pocket transmitter
Transmission frequency range: 734.000MHz
Channels: 1680
Groups: 20 groups + 1 user group
Inputs: Mini-XLR (3-pin) with phantom power (for headset)
Frequency response: 60Hz
Rated HF output power: Variable (10, 30, 50 mW)
Controls: select, set, power (on/off/mute)
Indicators: power/battery status low (LED), multifunction LC display
Operating voltage: 2 x AA battery
Operating time: >14 h (with alkaline batteries)
Width: 63mm
Height: 87mm
Depth: 25mm
Weight: 0.1kg
Other features: IR frequency synchronisation, Transmission power adjustable in 3 stages, incl. batteries, Battery status indicator, Adjustable audio sensitivity
LDWIN42R2 – Dual Receiver
Product type: Receiver
Type: true diversity
Modulation Type: FM
Transmission frequency range: 734.000MHz
Channels: 2 x 1680
Groups: 2 x 20 groups + 1 user group
Antenna inputs: 2
Antenna connector: TNC
Frequency response: 60Hz
Noise reduction: squelch
Transmission optimization: address allocation
THD: < 1 %
Signal-to-noise ratio: > 100dB
Audio output, balanced: 2 x XLR
Audio output, unbalanced: 2 x 6.3 mm TS
Audio mix output, unbalanced: 6.3 mm Jack
Max. output level: + 10dBu
Headphones ouput: 2
Headphones outputs: 6.3 mm TRS
Controls: 2 x mains switch / volume, 2 x headphones level, 2 x menu
Indicators: 2 x multifunction LC display
Operating voltage: External Power Supply, 1,000 mA, 13.5 V DC
Width: 480mm
Height: 44mm
Depth: 190mm
Weight: 2.4kg
Accessories (included): 2 x antenna, User’s manual, 2 x TNC adapter, 2 x TNC cable, batteries, power supply
Other features: channel search function, IR frequency synchronisation
