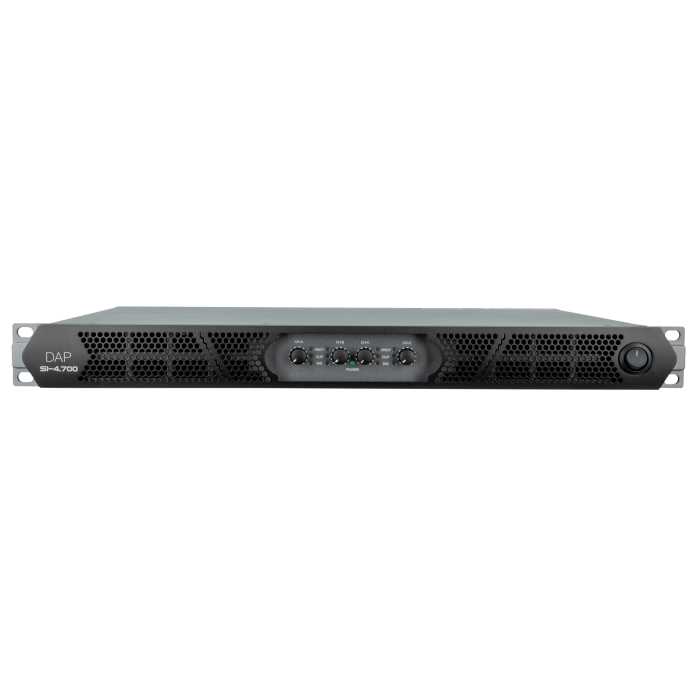

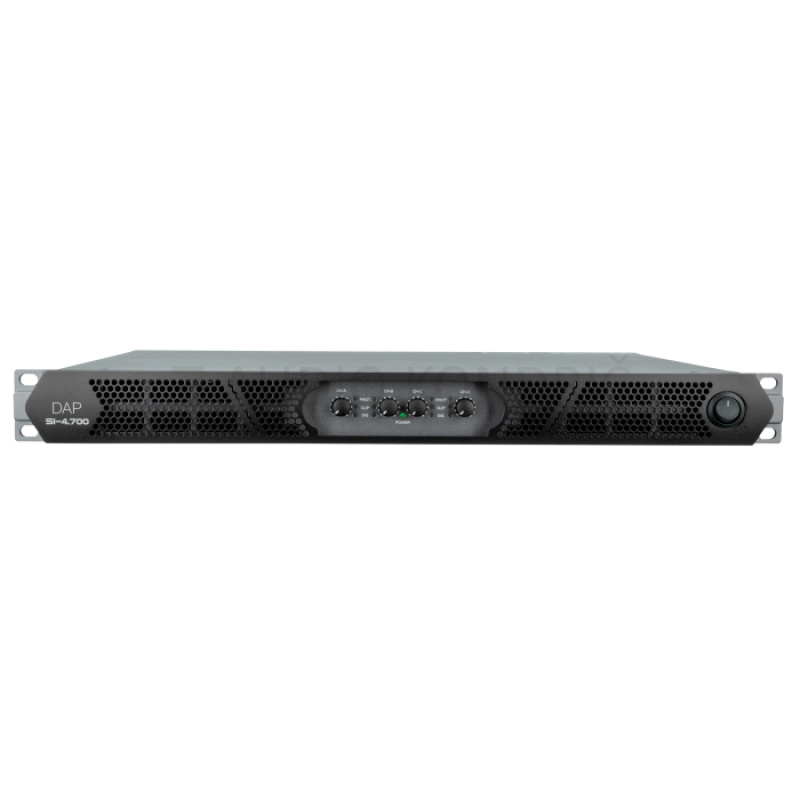

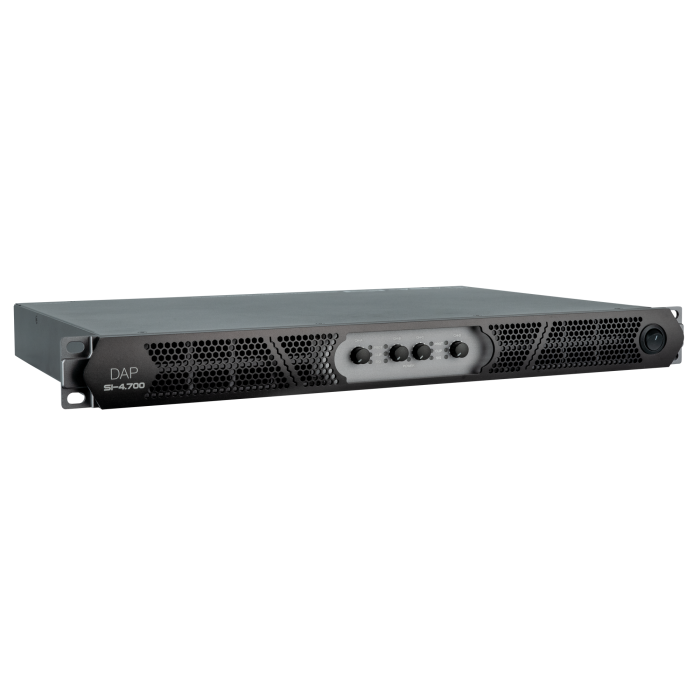

DAP SI-4.700, 4 x 700W ojačevalec

Dodatne Informacije

• Outputs
• 2 ohms Stable :Yes
• outputs
• Output per Channel into 8 ohms at 1 kHz: 450 W
• Output per Channel into 4 ohms at 1 kHz: 700 W
• Output per Channel into 2 ohms at 1 kHz: 1000 W
• Bridge Output into 8 ohms at 1 kHz: 1350 W
• Bridge Output into 4 ohms at 1 kHz: 2000 W
• Output Channels: 4
• Output Mode: 4-channel, Bridge, Mono, Parallel, Stereo

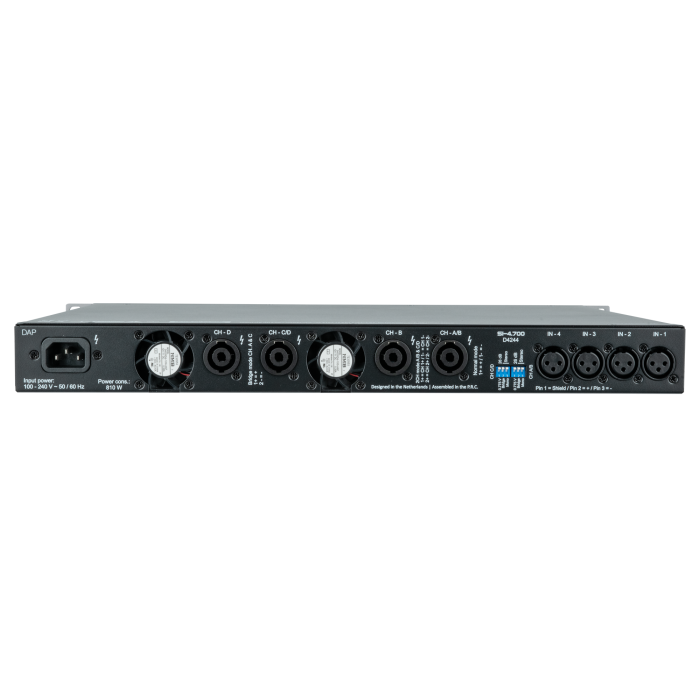

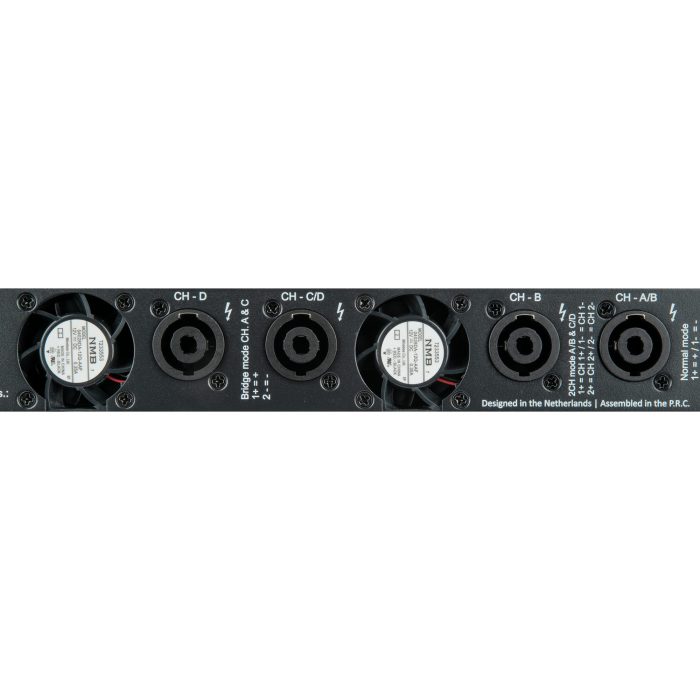

• Output Connector: Speaker Connector 4 pole
• Inputs
• Mono Inputs: 4

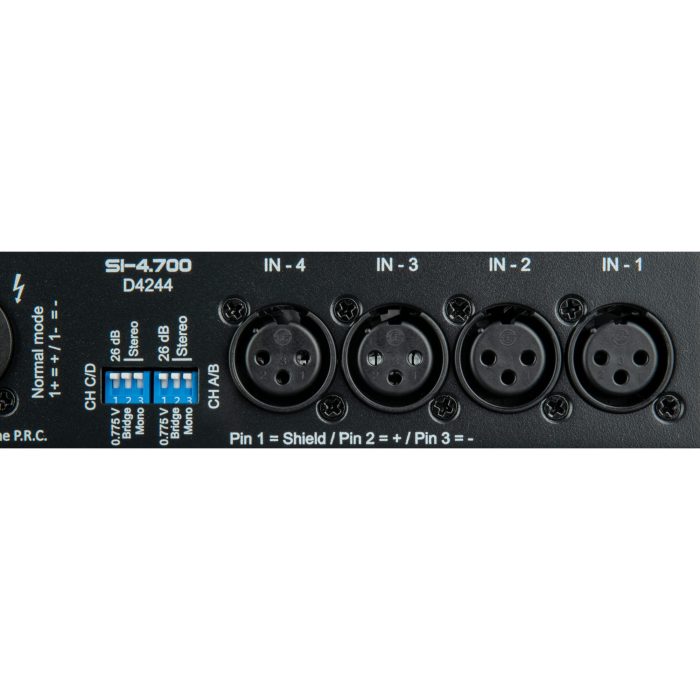

• Mono Input Connector: 3-pin XLR
• Mono Input Impedance: 20000 Ω
• Balanced Mono Input Sensitivity: 32 dBu
• Audio Specifications
• THD Level: < 0.05 %
• Signal-to-noise Ratio: > 100 dB
• Slew Rate: 50 V/μs
• Amp Technology: Class D
• Damping Factor: 1000 :1
• Crosstalk: 75 dBu
• Frequency Response Minimum: 20 Hz
• Frequency Response Maximum: 20000 Hz

Electrical Specifications and Connections

• *Power Supply: 100-240 V AC 50/60 Hz
• SMPS: Yes
• Power Consumption: 810 W
• Power Connector: In IEC
  Mechanical Specifications
• Height (mm): 45 mm
• Width (mm): 483 mm
• Length (mm): 296 mm
• Installation Depth (Excl. Connector): 296 mm
• Flightcase Size: 19″
• Rack Units: 1 U
• Housing Steel
• Colour Black
• Finish Powder Coating
• Weight 5.2 kg
• IP Rating IP20 (indoor use only)
  Product Properties
• Electronic Protection Clip limiter, DC voltage, Overheat, Overload,Under voltage
• LED Indicators: Clip, Power, Protect, Signal
  Included Items
• Included Cables: IEC cable
• Included Accessories: Rubber feet
