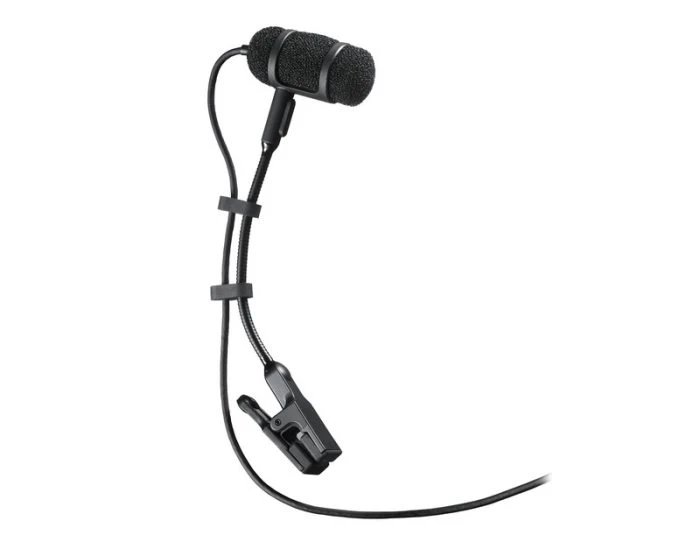

Designed for sax, toms, brass and percussion, the PRO 35 excels in high-SPL applications and is ideal for active stage performances. Its extended frequency response captures subtle nuances of the performance. The included UniMount® clip permits accurate positioning and provides shock resistance while protecting the element. The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
- UniMount® clip permits accurate positioning, provides shock resistance and protects element
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Extended frequency response captures subtle nuances of the performance
- 6′ (1.8 m) cable permanently attached to microphone
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 50-15,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -45 dB (5.6 mV) re 1V at 1 Pa |
| IMPEDANCE | 250 ohms |
| MAXIMUM INPUT SOUND LEVEL | 145 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 115 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 64 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
| SWITCH | Flat, roll-off |
| WEIGHT (MICROPHONE) | 0.3 oz (8 g) |
| WEIGHT (POWER MODULE) | 2.9 oz (81 g) |
| DIMENSIONS (MICROPHONE) | 0.98″ (25.0 mm) long, 0.40″ (10.2 mm) diameter |
| DIMENSIONS (POWER MODULE) | 3.66″ (92.9 mm) long, 0.74″ (18.9 mm) diameter |
| OUTPUT CONNECTOR (POWER MODULE) | Integral 3-pin XLRM-type |
| CABLE | 6.0′ (1.8 m) long (permanently attached to microphone), 0.10″ (2.6 mm) diameter, 2-conductor, shielded cable with TA3F-type connector |
| ACCESSORIES FURNISHED | AT8418 UniMount® microphone instrument mount; AT8538 power module; soft protective pouch |
| AUDIO-TECHNICA CASE STYLE | M12 |
