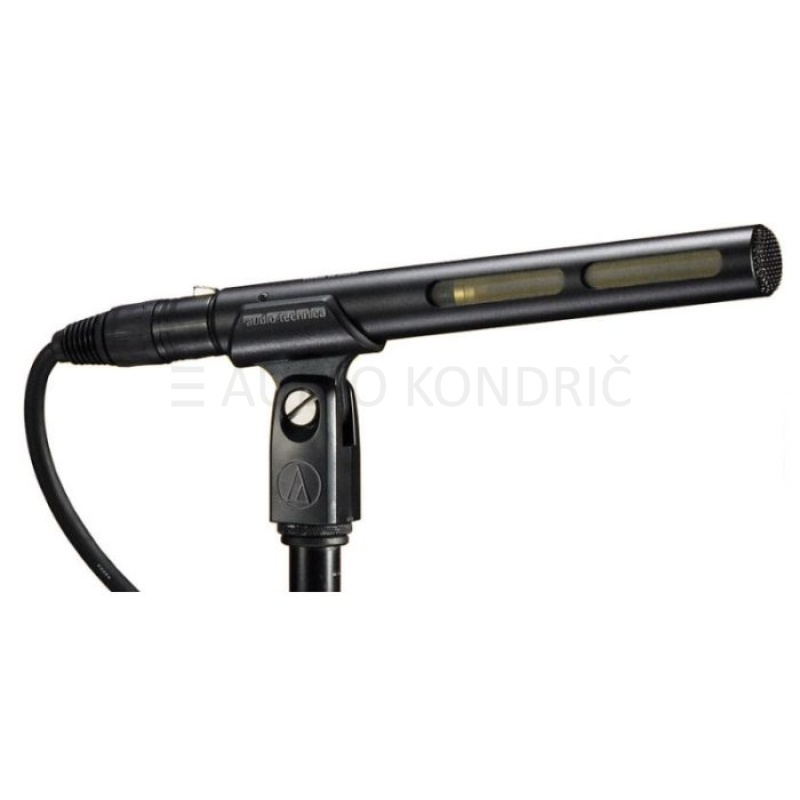

Audio-Technica’s AT875R is designed for video production and broadcast (ENG/EFP) audio acquisition. Audio-Technica’s shortest shotgun microphone, it mounts conveniently on a DV camcorder without adding noticeable heft, and is ideal for use with compact digital cameras. This high-performance microphone offers a narrow acceptance angle of line + gradient design. It also features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound arriving from the sides and rear of mic.
- Designed for video production and broadcast (ENG/EFP) audio acquisition
- Extremely short length (under 7″) ideal for use with compact digital cameras
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Excellent sound rejection from the sides and rear of mic
- Tailored response minimizes camera and handling noise
- Operates on phantom power only
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Line + gradient |
| FREQUENCY RESPONSE | 90-20,000 Hz |
| OPEN CIRCUIT SENSITIVITY | –30 dB (31.6 mV) re 1V at 1 Pa |
| IMPEDANCE | 100 ohms |
| MAXIMUM INPUT SOUND LEVEL | 127 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 107 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 74 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
| WEIGHT | 80 g (2.8 oz) |
| DIMENSIONS | 175.0 mm (6.89″) long, 21.0 mm (0.83″) diameter |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| ACCESSORIES FURNISHED | AT8405a stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; windscreen; soft protective pouch |
| AUDIO-TECHNICA CASE STYLE | SG4 |
