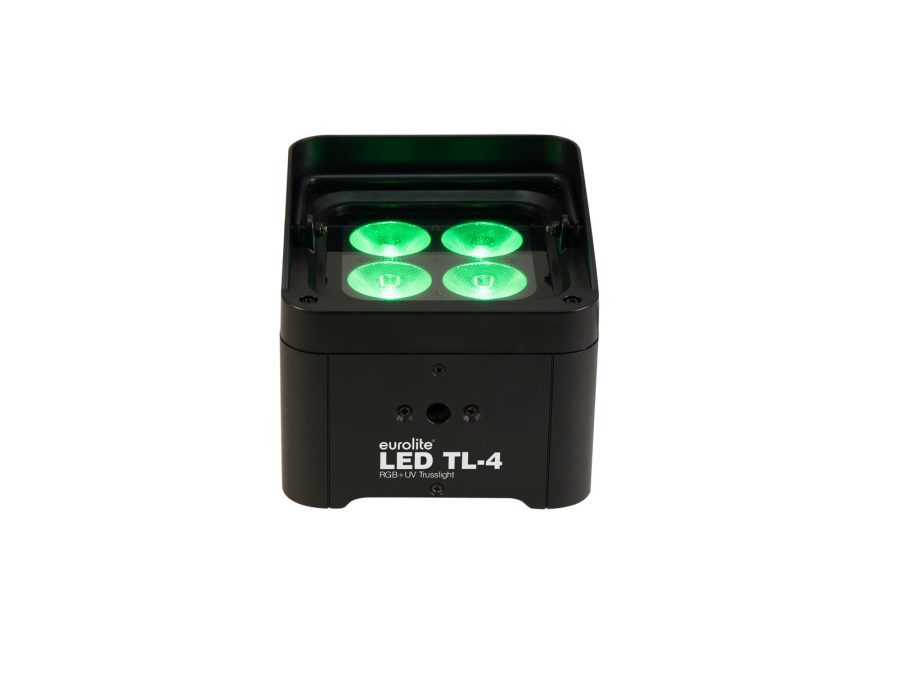

LED TL-4 QCL RGB+UV Trusslight

Compact and bright
Perfect for ALUTRUSS 4-POINT SYSTEM QUADLOCK
Folding foot adjustable in 5 steps for flexible placement
4 powerful LEDs 8 W high-power 4in1 QCL RGB/UV (homogenous color mix)
Color change adjustable; Dimmer electronic; color blend stepless
Strobe effect
Integrated show programs
Direct color selection for 18 preset colors
The device is cooled by passive convection cooling
Control via DMX; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone
With a beam angle of 13°
Monochrome 4 digit 7-segment LED display
For application areas such as: Trade fair and shop fitting; Stage
Silent operation
Preprogrammed in LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Mains input and output for power linking up to 8 units

Dodatne Informacije

Product type	LED PAR Lighting
Type	Rechargeable battery
Colour spectrum	RGBW
Number of LEDs	5
LED type	4 W
LED PWM Frequency	650 Hz, 1530 Hz, 2150 Hz, 4000 Hz – adjustable
Dispersion	Beam Angle: 19 °, Field Angle: 36 °
DMX input	XLR 3-pin male
DMX output	XLR 3-pin female
DMX mode	10-channel, 3-channel, 5-Kanal 1, 5-Kanal 2, 6-channel, 7-channel
DMX Functions	Chaser selection, colour macro, Dimmer, Dimmer Fine, DMX Delay, RGBW, sound sensitivity, strobe
Control	DMX512, IR Remote Control, W-DMX
Standalone modes	Auto programs, Colour presets, Loop, sound programs, Static, User Colours
Controls	Down, Enter, Mode, Up
Indicators	OLED Display
Operating voltage	100 V AC – 240 V AC, 50 – 60 Hz
Power consumption	50 W
Housing material	ABS plastic
Cabinet colour	Black
Cooling	Convection
Illuminance	8000 lx @ 1 m, 806 lx @ 3 m
Luminous flux	1000 lm
Fuse	F3A / 250 V
Operating Temperature	0 – 40 °C
Relative Humidity	< 75 %, not condensing
Width	195 mm
Height	156 mm
Length	195 mm
Weight	2 kg
Weight (incl. mounting bracket)	2.5 kg
