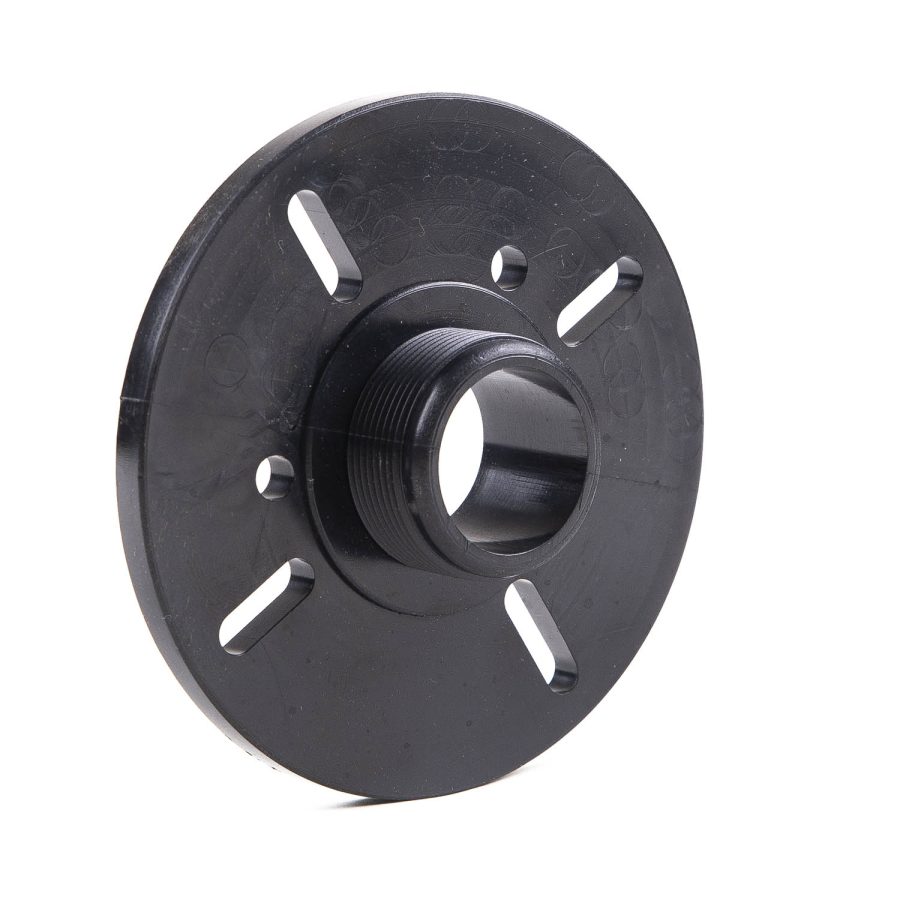

Adapter RID 09

Dodatne Informacije

Specifications
Thiele & Small Parameter
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 ”
Nominal Diameter
381 mm
Voice Coil
3 ”
Voice Coil
76.2 mm
Overall diameter
389.1 mm
Pitch Circle Diameter
369.8 mm
Cut- out Measurement
356.4 mm
Diameter of fixing holes
7 mm
Depth
173 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
450 W
maximum rated load
900 W
Sensitivity (1 W / 1 m)
100.8 dB
Frequency response
40 – 4000 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
9.27 mm
Fs (Resonance Frequency)
45 Hz
Re (DC resistance)
5.27 Ohm(s)
Qms (mechanical quality)
6.7
Le (inductance of the voice coil)
0.64 mH
Qes (electrical quality)
0.36
Qts (overall quality)
0.34
Vas (equivalent volume)
153
Mms (moving mass)
84 g
BL (power factor)
18.6 T/m
Xmax (maximum displacement)
5.9 mm
Cms (elasticity of the suspension)
0.15 mm/N
Sd (membrane area)
856 cm²
Weight
4,121 kg
