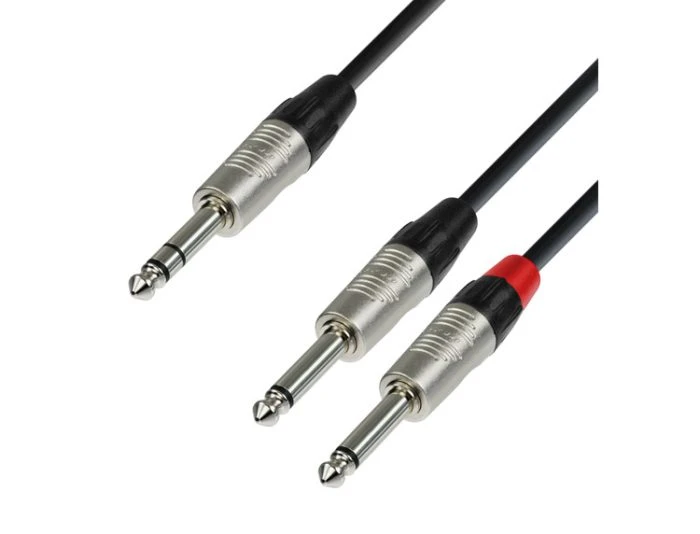

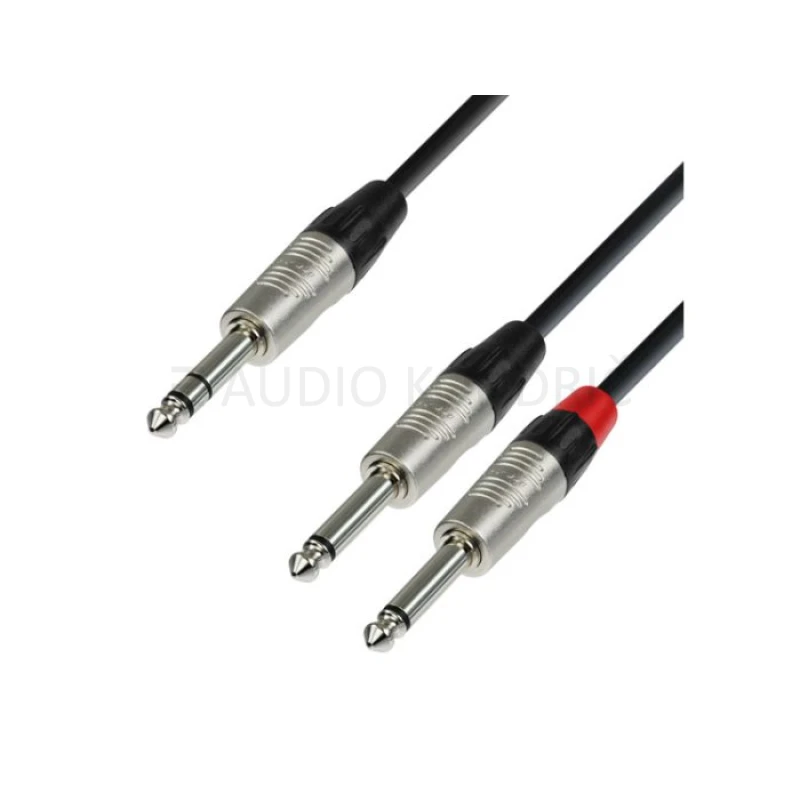

Adam Hall K4YVPP0600 REAN Audio kabel, Jack stereo 6.3mm 2 x Jack mono 6.3mm, 6m

17,00

Adam Hall Cables 4 Star Series – Audio Cable REAN 6.3 mm Jack stereo to 2 x 6.3 Jack mono 6.0 m

Šifra: K4YVPP0600 Kategorije: , ,

Opis

Split or Y-cables for use in inserts or for splitting stereo sources. The rugged, simply shielded cable and the REAN © 6.3 mm TRS plugs ensure optimal signal transmission.

Specifications:

  • Type: Microphone Cable
  • Color: black
  • Overall diameter: 5.8 mm +/- 0.2mm
  • Conductor area: 0,22 mm²
  • AWG (American Wire Gauge): 24
  • Conductor material: bare copper, OFC
  • Composition of conductor: 28 x 0,10 mm
  • Screen material: copper wire screen
  • Screen: spiral wound
  • Conductor resistance: 80 Ohm / km
  • Capacity: <90 pF/m
  • Overall jacket material: PVC mat

Plugs:

  • Model name: RP2C
  • Manufacturer: Rean
  • Product type: Jack
  • Type: 6,3 mm
  • Number of poles: 2
  • Gender: male
  • Cable diameter: 4 – 7 mm
  • Colour marking:
  • Contact surface: Nickel
  • Connection type: Solder contact
  • Colour: Silver
  • Housing: Zinc casting
  • Clamping sleeve: POM
  • Dimensions (L x Ø ): 85.0 x 15 mm
  • Model name: RP3C
  • Manufacturer: Rean
  • Product type: Jack
  • Type: 6,3 mm
  • Number of poles: 3
  • Gender: male
  • Cable diameter: 4 – 7 mm
  • Colour marking:
  • Contact surface: Nickel
  • Connection type: Solder contact
  • Colour: Silver
  • Housing: Zinc casting
  • Clamping sleeve: POM
  • Dimensions (L x Ø ): 85.0 x 15 mm
