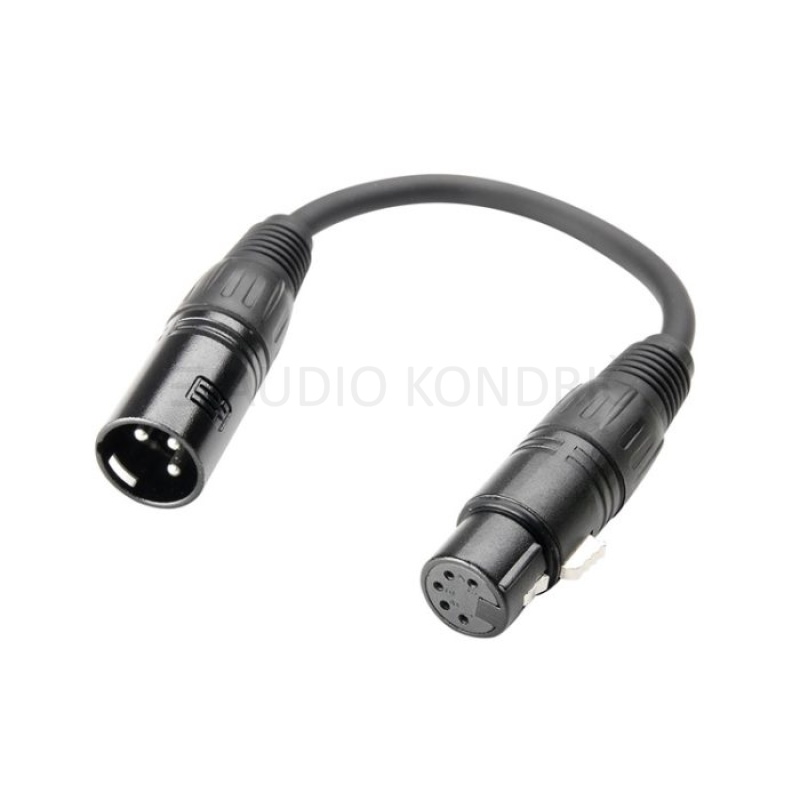

DMX Adapter Adam Hall K3DHM0020, XLR moški 3-polni XLR ženski 5-polni, 0.2m

5,50

Adam Hall Cables 3 Star Series – DMX Adapter XLR female 5 pol to XLR male 3 pol 0.2 m

Šifra: K3DHM0020 Kategorije: , ,

Opis

Highly flexible DMX adapter cable with three-pin and five-pin XLR plugs.

  • Typ: DMX AES/EBU Cable
  • Color: black
  • Overall diameter: 5.8 mm +/- 0.2 mm
  • Conductor area: 0,22 mm²
  • AWG (American Wire Gauge): 24
  • Conductor material: bare copper, OFC
  • Composition of conductor: 28x 0,10mm
  • Screen material: copper wire screen
  • Screen: Braided wound
  • Conductor resistance: 53Ohm / km
  • Capacity: 68 pF/m
  • Overall jacket material: PVC mat

5-pole female

  • Model name: 7849-5POL
  • Manufacturer: Adam Hall
  • Product type: XLR Plug
  • Type: XLR
  • Number of poles: 5
  • Gender: female
  • Cable diameter: 4 – 7 mm
  • Colour marking: –
  • Contact surface: Nickel
  • Connection type: Solder contact
  • Colour: Black
  • Housing: Zinc -ally casting
  • Clamping sleeve: POM
  • Dimensions (L x Ø ): 67.0 x 19.0 mm

3-pole male

  • Model name: 7850
  • Manufacturer: Adam Hall
  • Product type: XLR Plug
  • Type: XLR
  • Number of poles: 3
  • Gender: male
  • Cable diameter: 4 – 7 mm
  • Colour marking: –
  • Contact surface: Nickel
  • Connection type: Solder contact
  • Colour: Black
  • Housing: Zinc-ally casting
  • Clamping sleeve: POM
  • Dimensions (L x Ø ): 70.0 x 19.0 mm
