LD Systems MIBS Podstavek za konferenčni mikrofon XLR

LD Systems MIBS, namizno stojalo s stikalom za konferenčne mikrofone

Opis

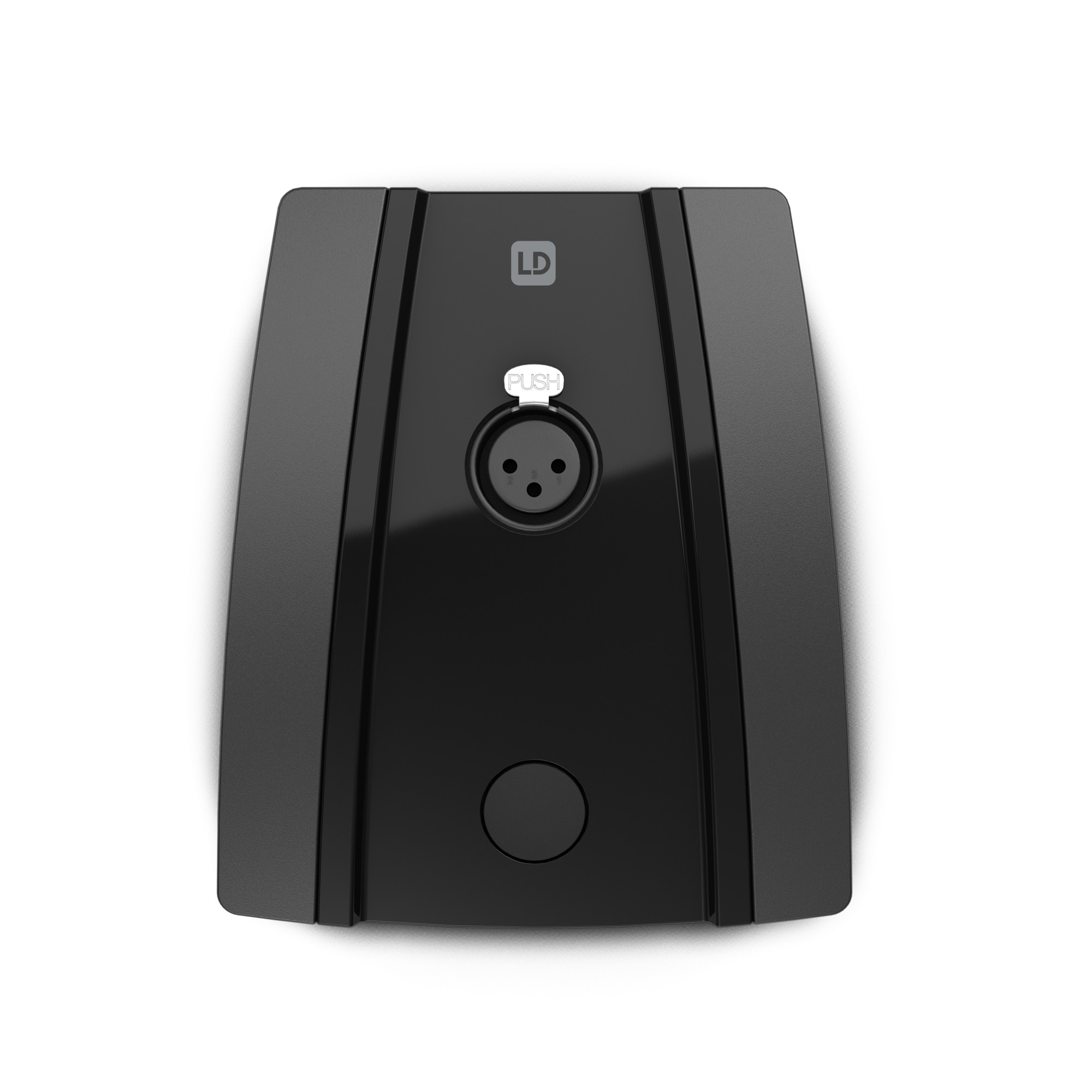

LD Systems MIBS Podstavek za konferenčni mikrofon XLR

The LD Systems MIBS is a switchable table stand with LED status indicator for flexible use in meetings, conferences, training and much more. With its sleek and elegant design, the MIBS, which features a robust die-cast zinc alloy, is suitable for businesses, educational institutions, conference centres, educational and administrative facilities or houses of worship.

The MIBS tabletop microphone base is compatible with all commercially available gooseneck microphones with XLR3M connectors and offers three operating modes: push-to-talk, push-to-mute and latch ON/OFF. The integrated active audio switching circuitry operates extremely quietly without disturbing the participants in the room.

The LED status indicator allows users to see at any time if the microphone is active. When the microphone on the MIBS is muted, the internal attenuation of more than 75 dB ensures that no unwanted information or noise is transmitted. Both the LED display and the active audio circuitry are powered by the 48V phantom power output from a mixing console or preamplifier for the microphone, so they do not require an additional power supply.

  • Active desktop microphone base unit for conferences, meetings and moreLD Systems MIBS Podstavek za konferenčni mikrofon XLR
  • Compatible with all gooseneck microphones with XLR3M connector
  • Integrated LED status display
  • 3 operating modes: Push-to-talk, Push-to-mute, Latch ON/OFF
  • Ultra-quiet active audio switching circuitry
  • >75 dB mute attenuation
  • 100 Hz low-cut filter
  • Slim and elegant design
  • Robust die-cast zinc alloy construction
  • Non-slip long rubber feet

Povezava na uradno spletno stran izdelka. LINK

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Ostali Adam Hall izdelki. LINK

Dodatne Informacije

Product type Desktop Microphone Base with switch
Control Configurable Push button with 3 selectable modes, Mode switch: Push to talk, Push to Mute, Latch On/Off, Talk LED with white microphone icon when active
Frequency response (-3 dB) 90 Hz – 20 kHz
Input Impedance 47 kohms (Balanced)
Output impedance 800 ohms (Balanced)
Off attenuation >75dB @ 1kHz
CNRR >65 dB (CMRR IEC)
Gain 5,5 dB
Input connector 3-pin XLRF
Output connector 3-pin XLRM
Phantom Power requirements 15 VDC – 48 VDC (+-10%), 6 mA typical
Idle power consumption 3 mW (MUTED)
Power consumption 6 mA
Operating temperature 0°C – 40°C; < 85% humidity, non condensing

Datoteke izdelka

Navodilo za uporabo. LINK

Katalog  izdelka. LINK
