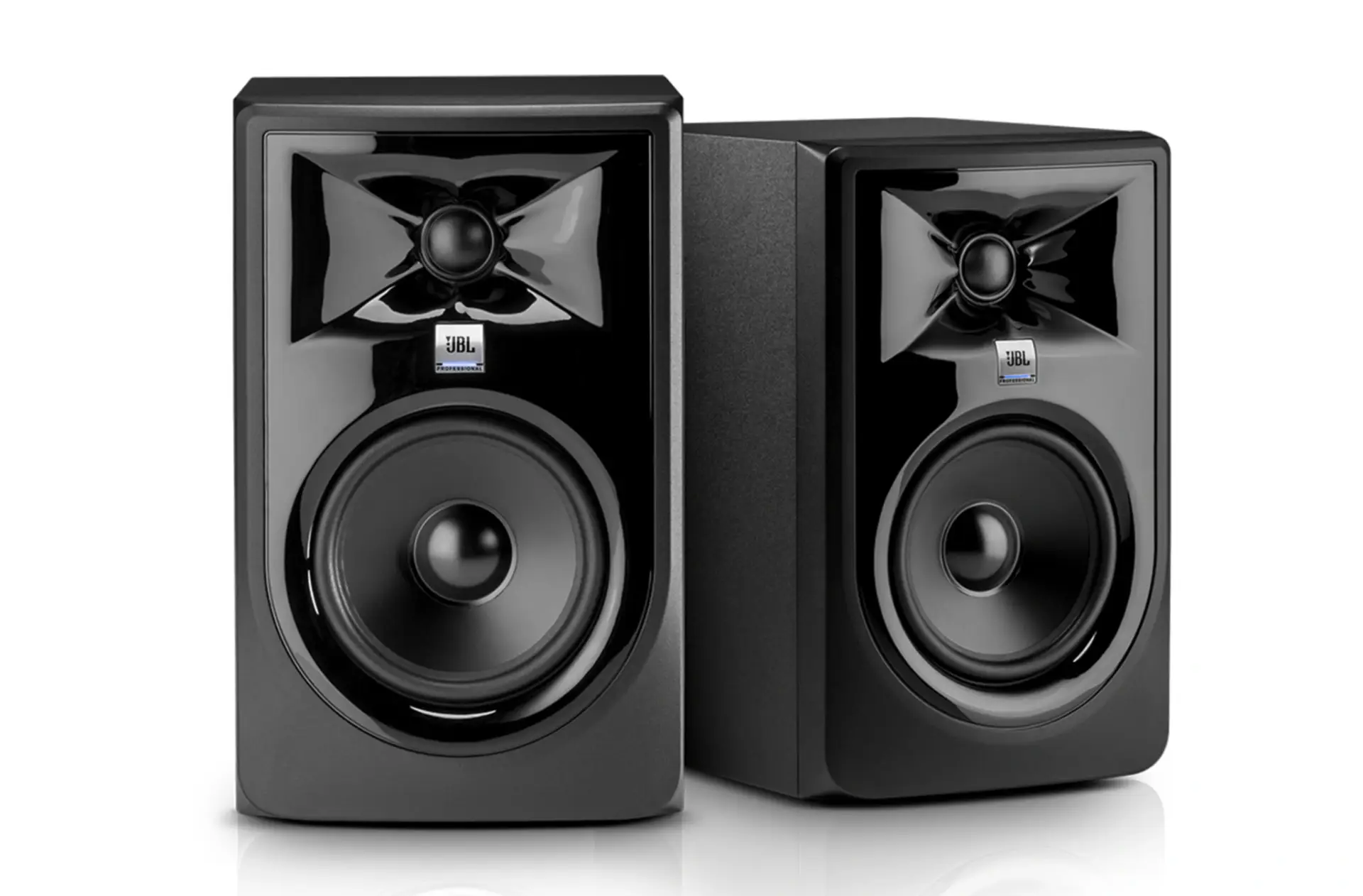

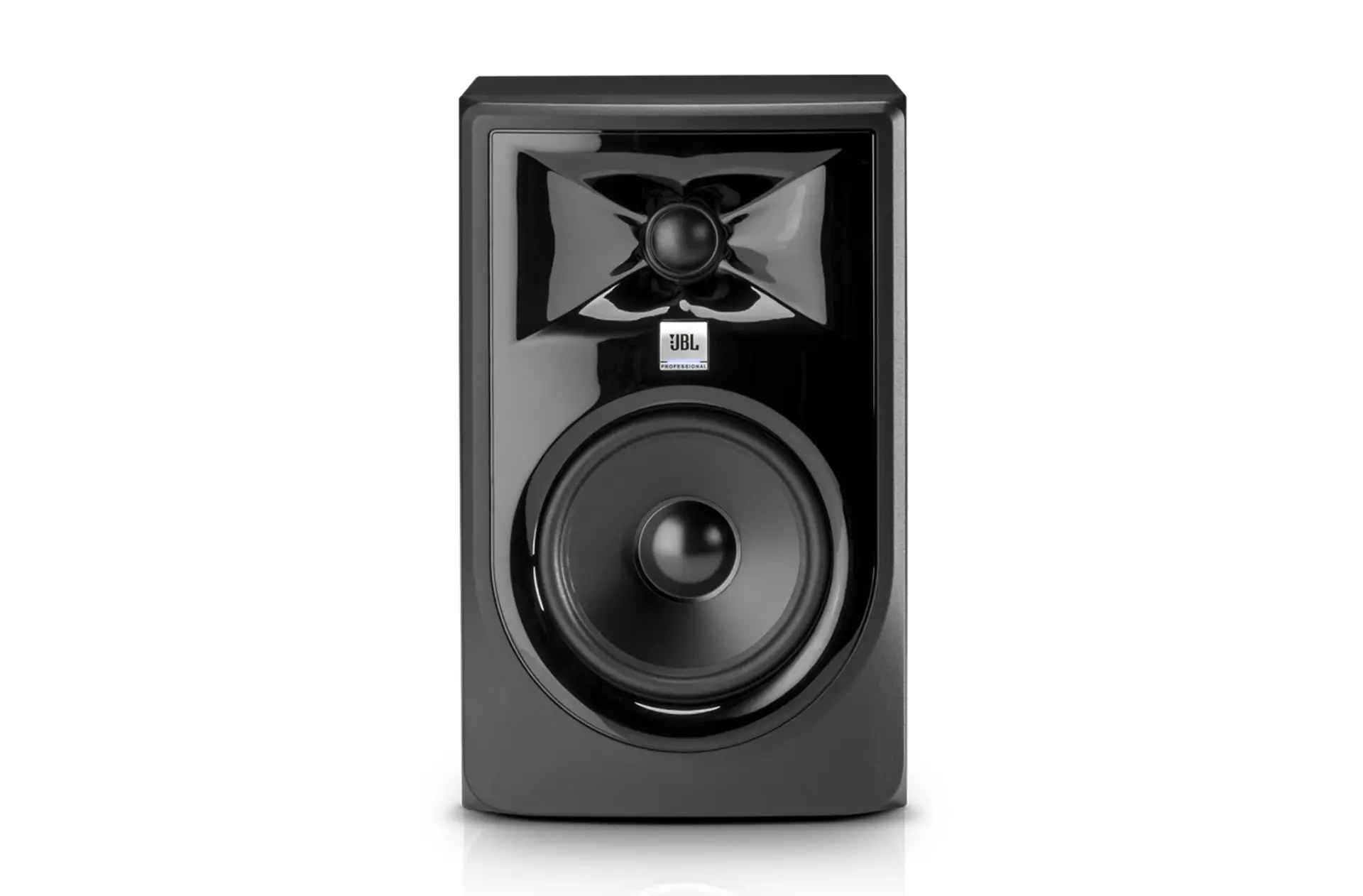

JBL 305P MKII, Aktivni studijski zvočnik

Aktivni Studisjki monitor priznanega podjetja JBL
5 “woofer in 1” visokotonska enota
Dvositemski ojačevalnik razreda D 82 W – 41 W HF in 41 W LF
Frekvenčni odziv (+/- 3dB): 49 – 20.000 Hz
Najvišja raven: 108 dB
Vhodna občutljivost nastavljiva +4 dBu / -10 dB
Stikalo za omejevanje visokih frekvenc
Vhod XLR in 6,3 mm priključek oboje balancirano
15 mm leseno ohišje
Mere (V x Š x G): 298 x 185 x 231 mm
Cena velja za kom

Tehnični Podatki

LF Driver	126mm (5″)
HF DRIVER SIZE	25mm (1″)
HF DRIVER TYPE	Soft dome
Crossover	1725Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT
INPUT SENSITIVITY (-10dBV INPUT)	92dB / 1m
Power Configuration	Bi-amplified
HF DRIVER POWER AMP	41W, Class-D
LF Driver Power Handling	41W, Class-D
Frequency Response (±3 dB)	49Hz – 20kHz
Frequency Range (-10dB)	43Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB)	43Hz
Maximum Continuous SPL	94dB
Maximum Peak SPL	108dB
MAXIMUM PEAK INPUT LEVEL(-10dBV / +4dBu)	+6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA	<10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA	0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio	75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Angle	120° x 90°

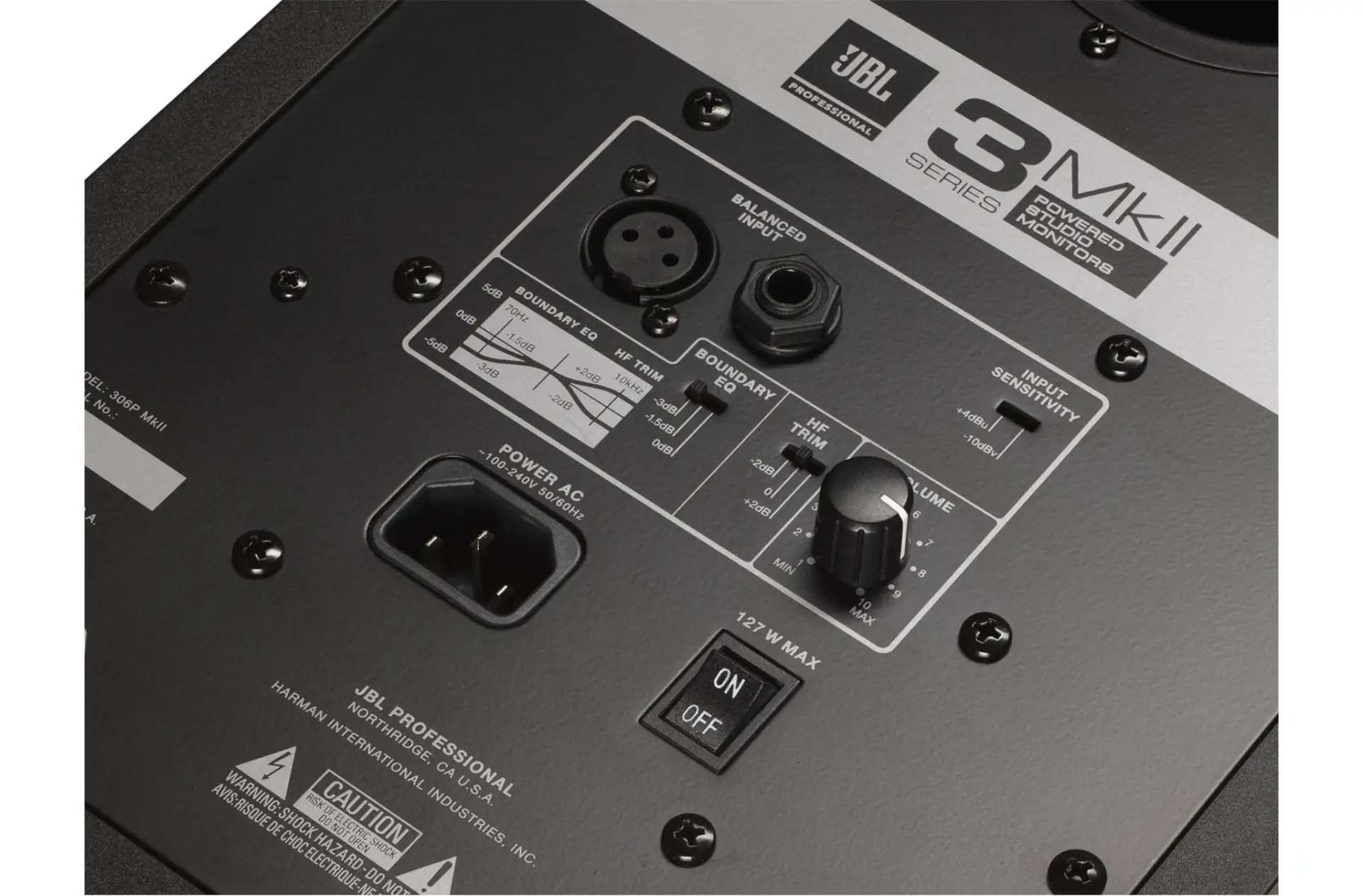

Input Connectors	1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL	-2dB, 0dB, +2dB
BOUNDARY EQ	LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE	100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE	Ported
Enclosure	15mm MDF
Enclosure Finish	Matte black PVC
BAFFLE CONSTRUCTION	Injection-molded structural ABS
CABINET DIMENSIONS (H x W x D)	298 x 185 x 231 mm (11.75″ x 7.3″ x 9.9″)
DISPLAY CARTON (H x W x D)	354 x 244 x 299mm (13.9″ x 9.6″ x 11.8″)
SHIPPING CARTON (H x W x D)	373 x 260 x 315mm (14.7″ x 10.2″ x 12.4″)
Net Weight (each)	4.73 kg (10.43 lbs)
